TBM Sealing Materials

Tail Seal Grease — CTR-TSG-P

Economical driving-grade tail sealant for shielded TBMs. Resists 35 bar groundwater pressure with flame-retardant, anti-washout performance.

Products › TBM Sealing Materials › Tail Seal Grease CTR-TSG-P

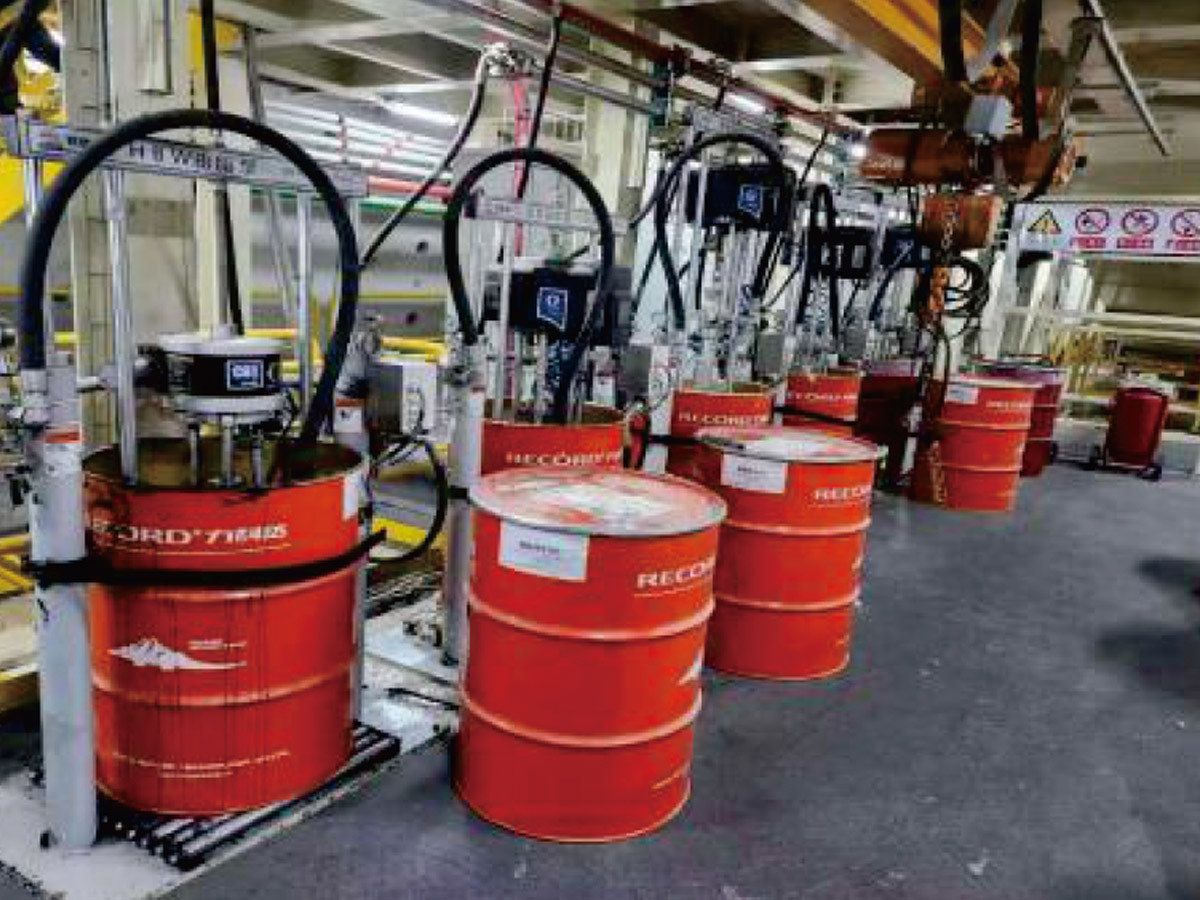

Tail Seal Grease CTR-TSG-P
TBM Sealing Material · Pump-type

Tail Seal Grease

Model CTR-TSG-P

An economical driving-grade tail sealant formulated for shielded TBMs. CTR-TSG-P is pumped directly into the tail sealing chamber through the machine's automated distribution system, establishing a continuous barrier that prevents ingress of groundwater, soil particles, and annulus grout or mortar grout back into the TBM invert.

The formulation maintains seal integrity at sustained water pressures up to 35 bar and provides strong adhesion to both metal shield surfaces and concrete tunnel lining segments. Its fibrous paste structure offers excellent anti-washout characteristics, preventing product displacement during tail brush contact. Self-extinguishing and flame retardant — not classified as hazardous under EU CLP.

At a Glance
AppearanceWhite/beige fibrous paste
Density1.35±0.05 g/cm³ (20°C)
Penetration220±20 (0.1mm, 25°C)
Flash Point≥220°C
Water SealNo leakage at 35 bar, 25°C
Consumption0.8–1.0 kg/m² (avg.)
Pumpability45–75 g/min
Specifications

Technical Data

PropertyValueTest Method / Notes
AppearanceWhite/beige fibrous pasteVisual
Density1.35±0.05 g/cm³20°C
Penetration220±20 (0.1mm)25°C
Flash Point≥220°C—
Water Spray Resistance<5% weight loss38°C, 40 psi, 5 min
Water Sealing PerformanceNo leakage at 35 bar25°C
Adhesion Time≥100 s—
Malleability≥87%—
Pumpability45–75 g/min—
Vertical Water Wash-out≤40 mm—
Average Consumption0.8–1.0 kg/m²Typical application
FlammabilitySelf-extinguishing; flame retardant—
Water SolubilityWater insoluble—
Hazard ClassificationNot classified as hazardous (EU CLP)EU CLP
Transport RegulationNot regulated—
Performance

Key Benefits

Resistant to water, grout & slurry — maintains an effective barrier against all three common intrusion media in the tail void environment simultaneously.
Excellent anti-washout — vertical wash-out ≤40 mm; fibrous structure retains product position even under sustained water flow and contact.
Adhesion to metal & concrete — bonds reliably to both shield steel and precast lining segments, maintaining a continuous seal at the ring-shield interface.
High tail seal brush protection — adequate malleability (≥87%) prevents brush damage while providing sufficient stiffness to resist grouting pressure.
High pressure capacity — tested to 35 bar with no leakage, suitable for deep urban metro and high water table projects.
Self-extinguishing & water insoluble — flame retardant for tunnel safety; water insoluble to prevent environmental leaching into groundwater.
Logistics

Packaging & Storage

Packaging Options
  • 25 kg drum
  • 70 kg drum
  • 250 kg drum
Storage & Shelf Life
  • Store at 10°C–35°C
  • Keep dry, away from direct sunlight
  • 12-month shelf life from manufacture date
  • Not classified as hazardous (EU CLP)
  • Not regulated for transport
